Mastsystem

EX-Masts

Tactical winch and belt-operated telescopic masts – Up to 20 meters

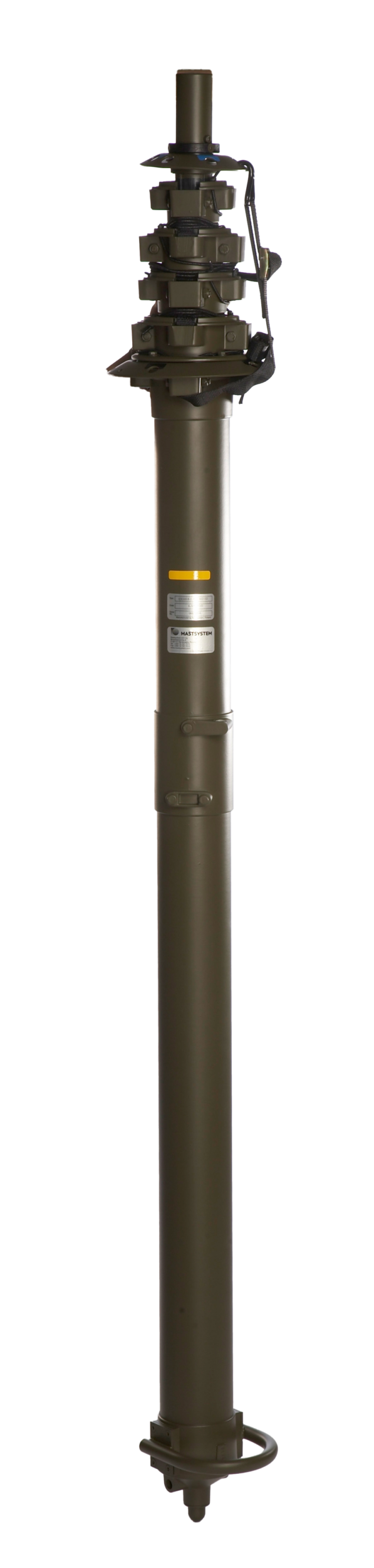

Telescopic EX-masts are mechanical winch and belt-operated masts made of carbon and glass fibre composite material. EX-masts are available in nine (9) standard configurations. Please see the table below for more specific information. Other lengths with different top loads and specifications are available at request.

Deployed by one (1) to three (3) persons and are elevated with a hand cranked winch. EX-masts can be equipped with various antenna adapters and antenna positioning accessories.

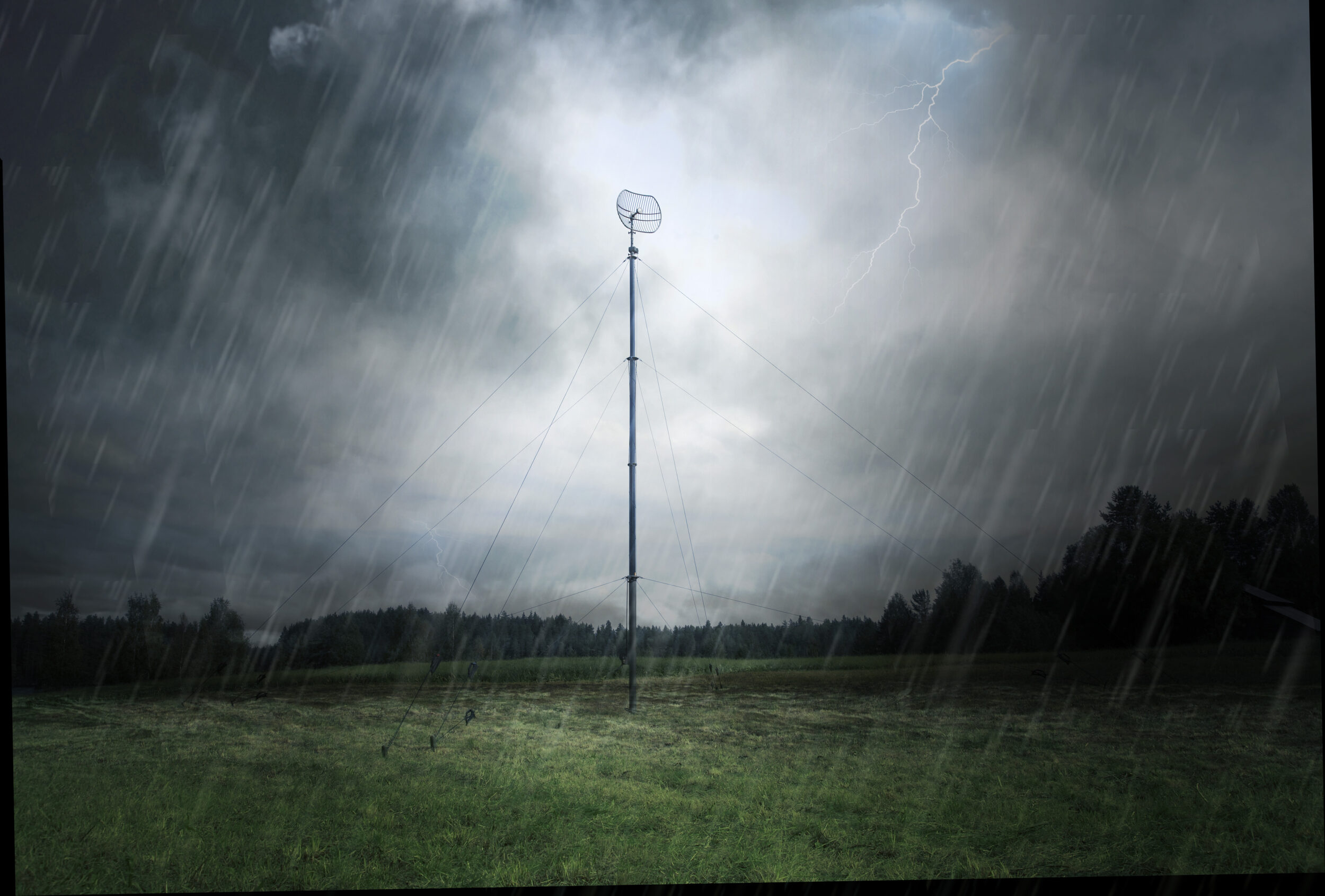

EX-masts are telescopic masts for heights up to 20 (65.6 ft.) meters and 50kg (110 lb) top loads, depending on mast performance requirements. The entire mast is rotatable by 360 degrees. This means that it’s easy for operators to rotate the system and reposition top load, even when the mast.

If you have specific requirements, we customise our standard designs according to customer’s specifications and requirements and painted in customer specific colours.

READ MORE ABOUT MASTSYSTEM BY DOWNLOADING OUR PDF BELOW.

This field is for validation purposes and should be left unchanged.

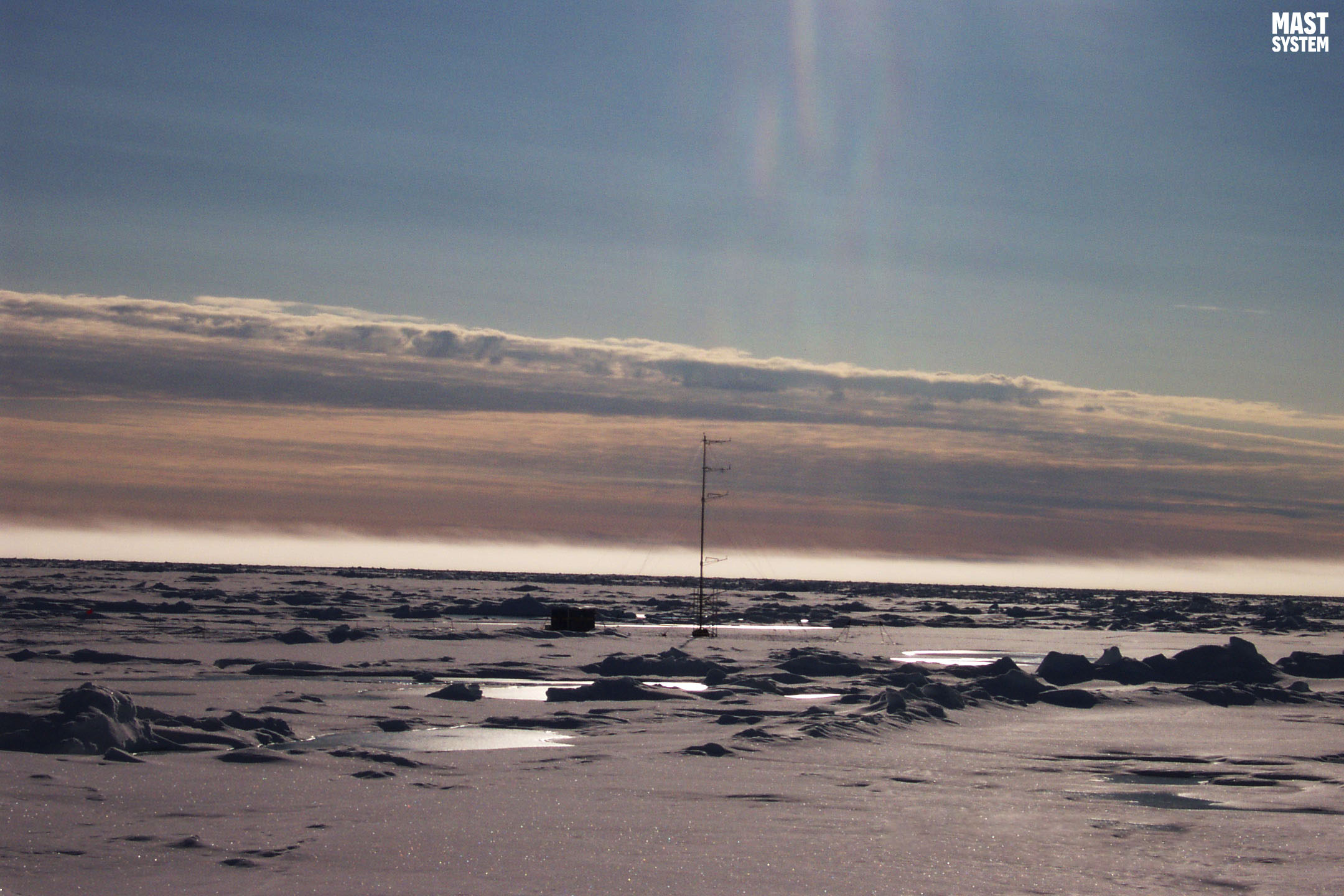

Mastsystem Int’l Oy’s quality – and environmental management system fulfils the requirements of ISO 9001, ISO 14001 and AQAP 2110 standards. Masts and accessories have been proven to meet the environmental requirements in accordance with the MIL-STD 810 and DEF STAN 00-35.

Systems quoted and supplied with all needed accessories for rapid and fast deployment. In addition to wide range of products, Mastsystem offers also training services, antenna pointing devices and other services to maximize your system lifespan and help the operators to operate systems safely and efficiently. Read more from “services” page: Tactical mast maintenance training and services | Mastsystem

Does your project require more top load capability, or deployment height greater than 20-meters? In that case, get to know the more robust EXL-product line: Tactical telescopic masts – EXL mast system | Mastsystem

STANDARD EX-Masts

Imperial units

EX105-MASTS EX105-MASTS EX105-MASTS EX128-MASTS EX128-MASTS EX128-MASTS EX141-MASTS EX141-MASTS EX141-MASTS
EXTENDED HEIGHT (M) 8 10 12 10 15 18 15 18 20
TRANSPORTATION LENGTH (M) 2.3 2.4 3.1 2.4 3.3 4.3 3.4 3.9 4.2
VERTICAL TOP LOAD (KG) 20 20 20 50 40 40 50 40 40
WIND AREA CxA (M²) 0.5 0.2 0.2 1 0.7 0.6 0.8 0.7 0.7
OPERATIONAL WIND SPEED (M/S) 25 20 20 25 25 25 25 25 25
MAST WEIGHT (KG) 20 21 25 27 35 43 43 48 50
ACCESSORIES WEIGHT (KG) 29 30 30 38 39 40 39 40 41

Masts listed above are examples. Other lengths with different top load specifications are available
at request.

Want to know more about EX-Masts? Our team is here to help you

This field is for validation purposes and should be left unchanged.

Additional information

Standard designs can be customised according to customer’s specifications and requirements and painted in customer specific colours. EX-masts can be supplemented with a wide selection of mounting kits for vehicles and shelters. Sand plate kit or hard ground kit also available.

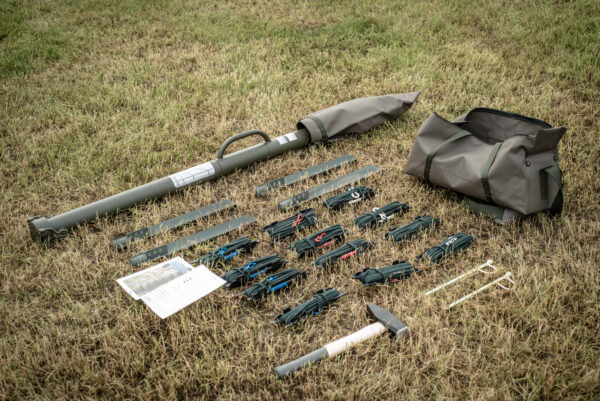

Accessories and Ancillaries

– antenna positioners (rotators, tilters & rotator-tilters)
– antenna brackets
– winch, winch power unit (WPU)
– vehicle mounting kits
– sledgehammer, guy stakes
– ground spike, spike, eye bar, base plate
– guy reels and measuring rope
– accessory bags

We offer everything needed to deploy your top load rapidly and safely. Read more about wide accessory- and ancillary range from their dedicated product pages:

TAILORED TO MEET YOUR REQUIREMENTS

EX MAST SYSTEM FOR YOUR NEXT PROJECT? WE ARE HERE TO HELP

Long experience in mast configuration helps us to find and configure the optimal system to fulfil your requirements. Start the journey and we will contact you at soonest.
