EXL-Masts
Tactical telescopic masts for large and heavy top loads – up to 50 meters
Tactical telescopic masts are mechanical winch and belt-operated masts, designed for larger and heavier top loads. EXL-masts are made of carbon and glass fibre composite material. EXL-masts can be equipped with various antenna adapters and antenna positioning accessories.
Heavy duty EXL-masts are available in seven (7) standard configurations. Please see the table below for more specific information. Other lengths with different top loads and specifications are available at request. EXL-masts are telescopic masts for heights up to 50 (164 ft.) meters and 150kg (330 lb) top loads, depending on mast performance requirements.
If you have specific requirements, we customise our standard designs according to customer’s specifications and requirements and painted in customer specific colours.
These mast systems have seen wide usage around the globe, from arctic surrounding all the way to scorching desert environments. EXL-masts have tolerance for harsh environments: carbon fibre construction withstands sand, dust, ice, and dirt. Field antenna mast, transportable with vehicle and deployable up to heights of 50-meters with minimal crew size are great option to enhance your tactical communication capabilities.
LEARN MORE ABOUT THE EXL MAST SYSTEM BY DOWNLOADING OUR PDF BELOW.
Mastsystem Int’l Oy’s quality – and environmental management system fulfils the requirements of ISO 9001, ISO 14001 and AQAP 2110 standards. Masts and accessories have been proven to meet the environmental requirements in accordance with the MIL-STD 810 and DEF STAN 00-35.
Systems quoted and supplied with all needed accessories for rapid and fast deployment. In addition to wide range of products, Mastsystem offers also training services, antenna pointing devices and other services to maximize your system lifespan and help the operators to operate systems safely and efficiently. Read more from “services” page: Tactical mast maintenance training and services | Mastsystem
We offer everything needed to deploy your top load rapidly and safely. Get to know more about our antenna pointing devices: Antenna Pointing Devices and Brackets | Mastsystem
STANDARD EXL-Masts
| EXL167-MASTS | EXL167-MASTS | EXL167-MASTS | EXL195-MASTS | EXL195-MASTS | EXL195-MASTS | EXL195-MASTS | |
|---|---|---|---|---|---|---|---|
| EXTENDED HEIGHT (M) | 21 | 24 | 26 | 30 | 34 | 40 | 50 |
| TRANSPORTATION LENGTH (M) | 4.3 | 4.4 | 4.6 | 5.5 | 5.6 | 6.4 | 7.6 |
| VERTICAL TOP LOAD (KG) | 120 | 100 | 100 | 120 | 130 | 80 | 50 |
| WIND AREA CxA (M²) | 1.2 | 1 | 0.8 | 1.2 | 1 | 0.8 | 0.5 |
| OPERATIONAL WIND SPEED (M/S) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| MAST WEIGHT (KG) | 87 | 91 | 96 | 130 | 147 | 165 | 190 |
| ACCESSORIES WEIGHT (KG) | 90 | 90 | 94 | 92 | 94 | 118 | 131 |
Masts listed above are examples. Other lengths with different top load specifications are available
at request.
Want to know more about EXL-Masts? Our team is here to help you
For the quickest response to your inquiries, please send an email to sales@mastsystem.com.
Additional information
EXL-masts can be deployed by two (2) or three (3) persons and are elevated with a hand-cranked winch or by an optional electric winch power unit (WPU). The entire mast is rotatable by 360 degrees. EXL-mast sections open one by one and an automatic mechanical locking mechanism allows guying each lower section separately during winching up. This allows safe handling of higher top loads especially under windy conditions.

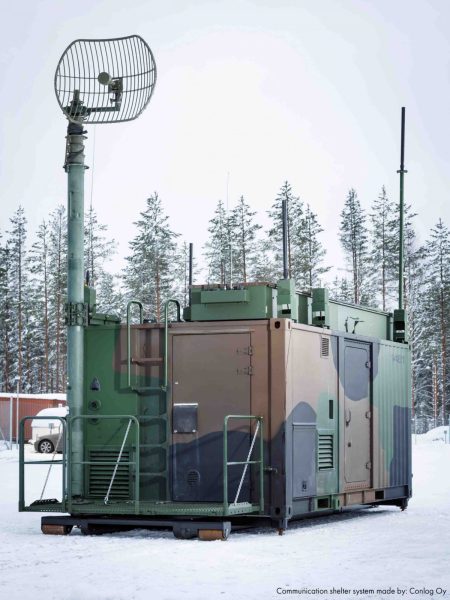

EXL-masts can be supplemented with a wide selection of mounting kits for vehicles and shelters. Sand plate kit or hard ground kit also available.
Accessories and Ancillaries
– antenna positioners (rotators, tilters & rotator-tilters)
– antenna brackets
– vehicle mounting kits
– winch, winch power units (WPU)
– sledgehammer, guy stakes
– ground spike, spike, eye bar, base plate
– guy reels and measuring rope
– accessory bags
