Tripods
Tactical tripods and tripod masts for fast deployment
Tripods and tripod masts can be used for several applications instead of small masts.
Tripods are applicable, for example to mountain top link applications as well as deploying a communication system on rooftops in urban areas. This makes tripods excellent, rapid and user-friendly choice for temporary communication networks in rescue, police, defence, firefighting and temporary lighting applications.
Mastsystem offers a wide range of tripods and tripod masts with various top load and height capabilities. Tripods made of glass fibre composite material withstand hard environmental conditions such as sand, dust, ice, and dirt. Light composite material means easier transportation, and less strain on operators carrying the communication system. Designed, tested and proven to work, our tripods systems have seen wide usage around the globe, from arctic surrounding all the way to scorching desert environments.

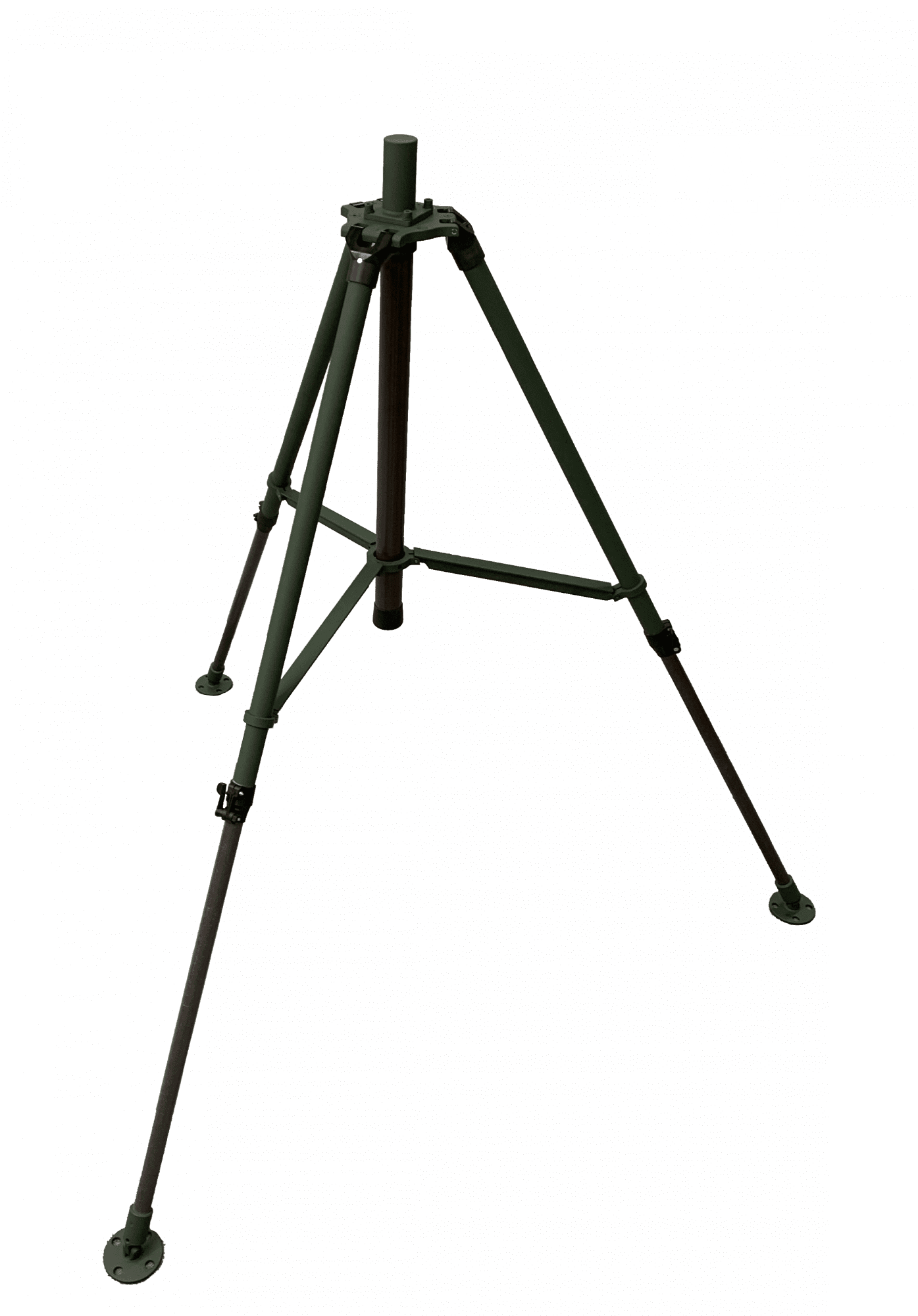

Product legs are telescopic, and sections are pushed out and locked in place with mechanical latches. Tripods are quick to deploy, and they provide excellent pointing accuracy for heavy narrow beam antennas. Tripods can also handle well inertial loads.
Read article: “Saab utilises Mastsystem tripods for state-of-the-art EW system”

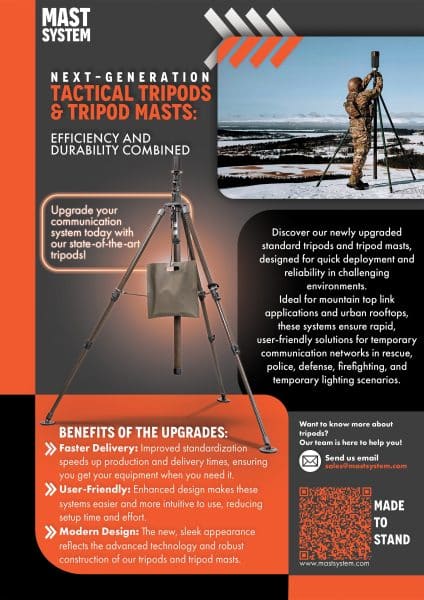

LEARN MORE ABOUT TACTICAL TRIPODS BY DOWNLOADING OUR PDF BELOW.
Mastsystem Int’l Oy’s quality – and environmental management system fulfils the requirements of ISO 9001, ISO 14001 and AQAP 2110 standards. Masts and accessories have been proven to meet the environmental requirements in accordance with the MIL-STD 810 and DEF STAN 00-35.
Tripods are compatible with all various top load adapters, extension tubes and positioners. Get to know our wide selection of solutions from product page: Antenna Pointing Devices and Brackets | Mastsystem
STANDARD Tripod systems
| MAST TYPE | TP44 | TP44 | TP44 | TM58* | TM58** | TM58*** |
|---|---|---|---|---|---|---|
| EXTENDED HEIGHT (M) | 1.6 | 2 | 3 | 6.0 | 6.0 | 6.0 |
| TRANSPORTATION LENGTH (M) | 1 | 1.2 | 1.5 | 1.7 | 1.7 | 1.7 |
| VERTICAL TOP LOAD (KG) | 30 | 30 | 30 | 5 | 5 | 5 |
| WIND AREA CxA (M²) | 0.5 | 0.5 | 0.5 | 0.15 | 0.15 | 0.5 |
| OPERATIONAL WIND SPEED (M/S) | 20 | 20 | 19 | 10 | 12 | 15 |
| MAST WEIGHT (KG) | 9 | 9 | 11 | 11 | 11 | 11 |
| ACCESSORIES WEIGHT (KG) | 3 | 3 | 3 | 3 | 3 | 3 |
*Tripod Mast

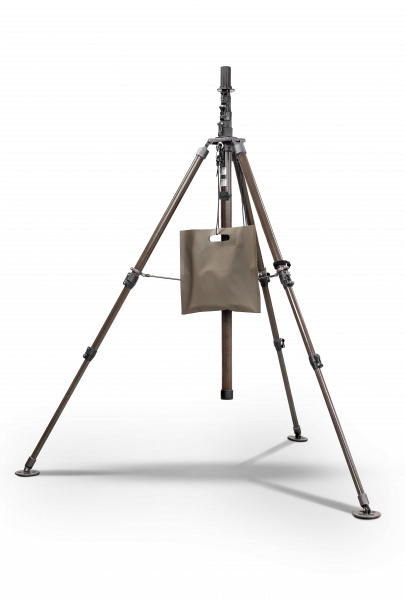

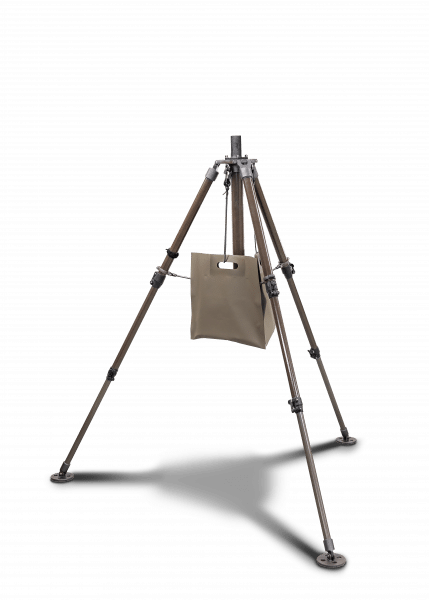

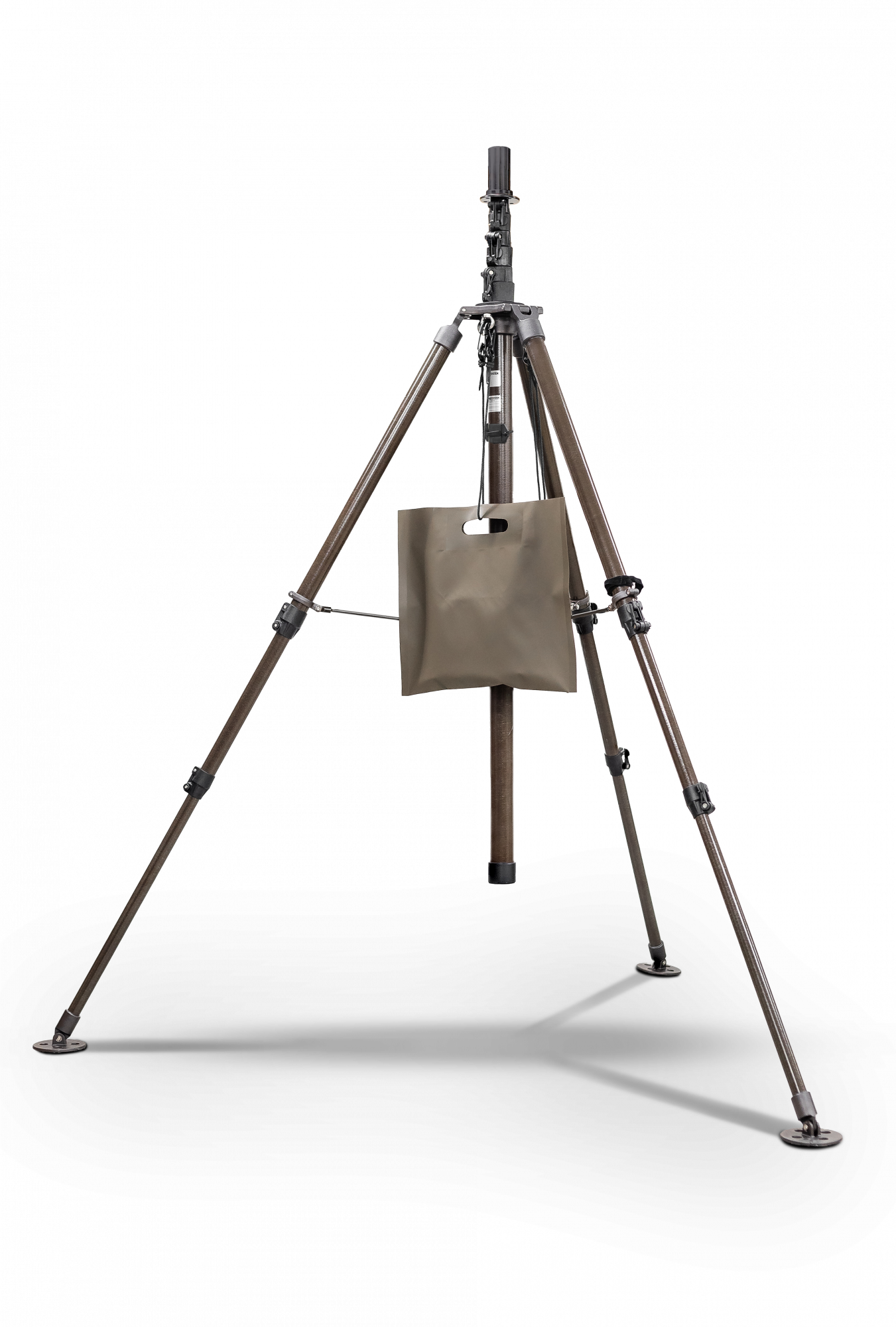

**Tripod Mast when counter weight is added
***Tripod Mast when guyed
Tripods and tripod masts listed above are examples. Other lengths with different top load specifications are available
at request.
Want to know more about Tripods? Our team is here to help you
For the quickest response to your inquiries, please send an email to sales@mastsystem.com.
Accessories and Ancillaries
– antenna brackets
– guying accessories
Mastsystem Int’l Oy’s quality – and environmental management system fulfils the requirements of ISO 9001, ISO 14001 and AQAP 2110 standards. Masts and accessories have been proven to meet the environmental requirements in accordance with the MIL-STD 810 and DEF STAN 00-35.
TAILORED TO MEET YOUR REQUIREMENTS
TRIPOD SYSTEM FOR YOUR NEXT PROJECT? WE ARE HERE TO HELP
Long experience in mast configuration helps us to find and configure the optimal system to fulfil your requirements. Start the journey and we will contact you at soonest.
